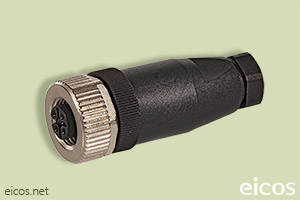

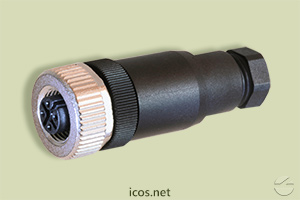

M12 Female Straight Connector for electrical connection of Eicos sensors with M12 plug

Technical Specifications

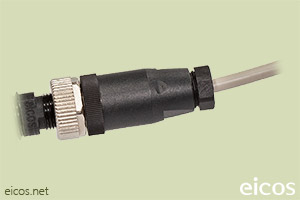

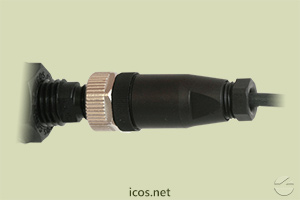

Electrical connection of the sensor with M12 Connector.

• Material: PA

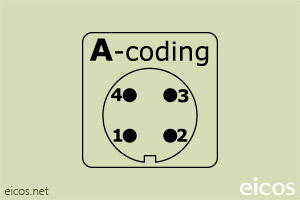

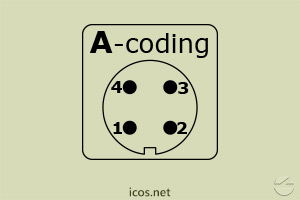

• Connectors: 04 contacts (female)
• Mounting: Straight
• Cable diameter: 4 - 6mm (cable no incluido)
• Voltage: 250V
• Operating temperature range: -25°C to 85°C
• Enclosure rating: IP67
• Weight: 25g
•
• Application:

  Level Switches
  Side Mounting:

  • LA36-M12
  • LA32-M12
  • LA322E-M12
  • LA31N-M12
  • LF322E-M12
  Level Switches
  Vertical Mounting:

  • LC36-M12
  • LD361-M12
  • LD362-M12
  • Série LE
  Flow Switches:

  • FE14B02-M12
  • FE14B04-M12
  • FA14B02-M12
  • FA14B04-M12
  • FA14B06-M12
  • FH12B02-M12
  • FH12B04-M12
  • FH12B06-M12
  • FC34B02-M12
  • FC34B04-M12
  Contrasseco Sensor:

  • Contrasseco C1 M12
