Flow Switch FA14B02-M12 ideal for low flows of water - 1/4"G

Certificación CE

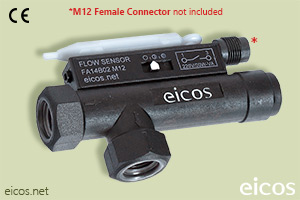

Eicos flow switch FA14B02-M12, ideal for low liquid flows

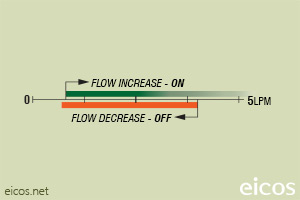

Flow setpoint range of flow switch FA14B02-M12 for liquids flow control

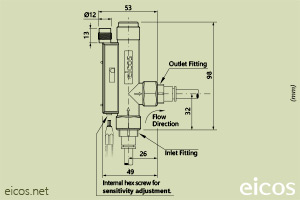

Dimensions of Eicos flow switch FA14B02-M12

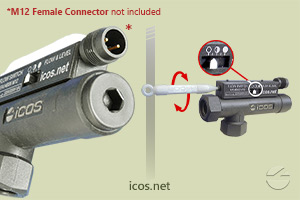

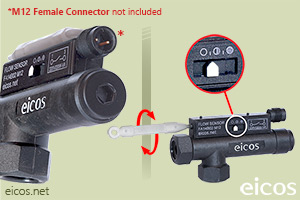

Sensitivity adjust of the Eicos flow switch FA14B02-M12

1 pc.

95.00 € pc.VAT not included
114.95 € pc.VAT included

2 — 5 pcs.

86.00 € pc.VAT not included
104.06 € pc.VAT included

+ 6 pcs.

79.00 € pc.VAT not included
95.59 € pc.VAT included

VAT only for Spain

In stock
Overview

Description

The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

The Eicos flow switch FA14B02-M12 of 1/4"G port is ideal for low flows of water. The sensor has a operation range that allow to adjust the ideal flow of liquid to be detected in application.

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases to bellow of adjusted.

Output connection in male M12 plug.

For oil applications, see the model FA14B04-M12 and FA14B06-M12.

Technical Specifications

  • Material: PPA - Polyphthalamide
  • Internal clearance: 8mm²
  • Maximum operating pressure: 25bar
  • Operating temperature range: 0°C to 100°C | 140°C @1h
  • Spring: AISI 304 Stainless Steel
  • Weight: 71g
  •
  • Output: On/Off
  • Switch: NO - SPST
  • Output connection: Wire 2 x 0.14mm² x 1.5m
  • Enclosure rating: IP66
  •
  • Mounting: Vertical with ascending flow
  • Inlet/outlet port: G 1/4" female (BSP - Parallel)
  • Sealing: NBR (nitrilic rubber) O’Ring
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.

A Snubber Filter K8 is sent with the sensor for protection of the electrical contact reed.
