Level Switch LA322E-M12 with M12 plug and compression gasket for tanks with thin wall
1 — 9 pcs.
10 — 99 pcs.
+ 100 pcs.
VAT not included
Description
Movement of the magnetic float opens / closes a hermetically sealed contact.

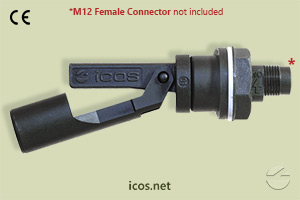

With Eicos level switch LA322E-M12, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for temperature up to 125°C.
The sensor, also known as level detector, indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the external side of the tank in Ø22mm hole and sealing by compression gasket (for tank with wall thickness up to 5mm). For each liquid level to detect, is needed to install a level switch.
Output by male M12 connection (female M12 connector not included)
Technical Specifications
- Material: PPA - Polyphthalamide PA hex nut
- Maximum operating pressure: 2bar
- Operating temperature range: -10°C to 125°C
- Color: Black
- Liquid minimum density (SG): 0.70
- Weight: 30g
- Output: On/Off

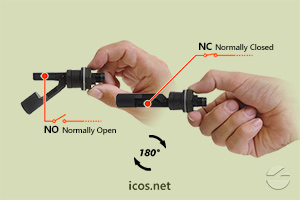

- Switch: NO/NC - SPST

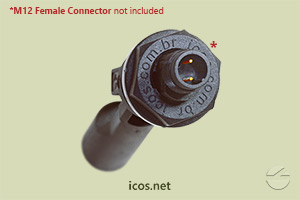

- Output connection: Male M12 plug (2 pins)
Female M12 connector NOT included - Enclosure rating: IP66

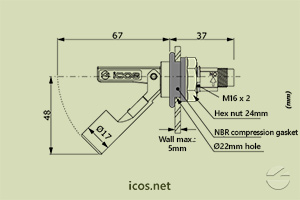

- Mounting: External side in Ø22mm hole
- Sealing: NBR (nitrilic rubber) compression gasket
- Maximum wall thickness: 5mm
- Minimum radius in cylindric tank: 50mm
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current | Peak Current |
| 110Vac | 20VA | 0.2A | 0.5A @20ms |
| 220Vac | 20VA | 0.1A | 0.5A @20ms |
| 5Vdc | 2.5W | 0.5A | 1A @20ms |
| 12Vdc | 5W | 0.5A | 1A @20ms |
| 24Vdc | 10W | 0.5A | 1A @20ms |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
Datasheet and Installation Guide
- Datasheet (PDF 434KB)
- Installation Manual (PDF 586KB)
Examples of Electrical Schematics
