> > > LA32N-40

Level Switch LA32N-40 for external mounting and liquids up to 125°C

Certificación CE

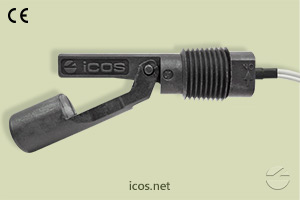

Eicos Level Switch LA32N-40 for liquids

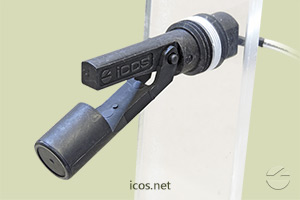

Mounting of the Eicos level switch LA32N-40
Dimensions of the level switch LA32N-40

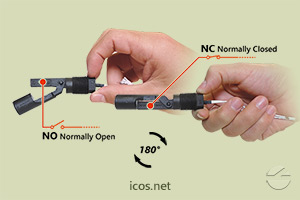

NO or NC installation of the level switch LA32N-40

1 — 9 pcs.

11.90 € pc.VAT not included
14.40 € pc.VAT included

10 — 99 pcs.

9.50 € pc.VAT not included
11.50 € pc.VAT included

+ 100 pcs.

7.90 € pc.VAT not included
9.56 € pc.VAT included

VAT only for Spain

In stock
Request a Quote
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LA32N-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for temperature up to 125°C.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the external side of the tank in 1/2"NPT thread. For each liquid level to detect, is needed to install a level switch.

Output connection by 40cm wire.

Technical Specifications

  • Material: PPA - Polyphthalamide
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 125°C
  • Color: Black
  • Liquid minimum density (SG): 0.70
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: External side in 1/2"NPT thread
  • Sealing: Sealant tape
  • Maximum wall thickness: 18mm
  • Minimum radius in cylindric tank: -
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
