> > CONTRASSECO C1 M12

Contrasseco Sensor C1 M12protects the pump starting without water

Certificación CE

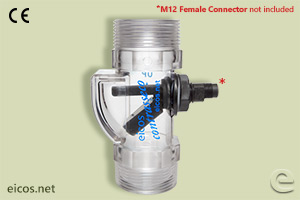

Contrasseco sensor for pump protection

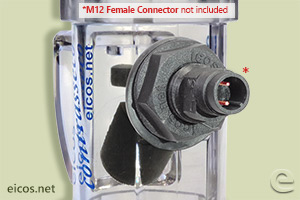

M12 male plug output of Contrasseco Sensor

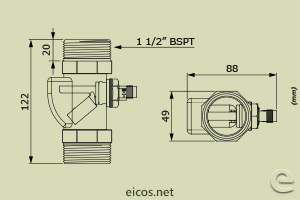

Dimensions of Contrasseco Sensor C1

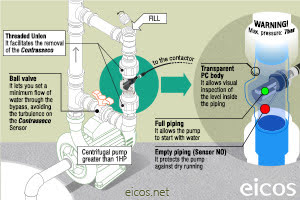

Bypass Contrasseco sensor mounting to protect the pump against dry running

1 pc.

79.20 € pc.VAT not included
95.84 € pc.VAT included

+ 2 pcs.

74.80 € pc.VAT not included
90.51 € pc.VAT included

VAT only for Spain

In stock
Overview

Description

The float inside a transparent tube, shows lack or presence of water in the pump housing.

The Contrasseco sensor protects the pump against dry running of the pump, it does not allow the starting of pump without the water. Its transparent body allows the visualization of the water level.

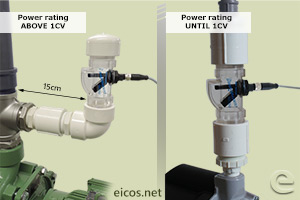

The mounting is made on the booster pumps up to 1CV (1 HP) or parallel pipe. Is indicated the use of the auxiliary contactor with the Contrasseco.

Important! Don’t apply solvents or diluents, they cause chemical damage to polycarbonate.

Technical Specifications

  • Material:
    • Body (Display): PC - Polycarbonate
    • Sensor: PPA - Polyphthalamide
  • Maximum operating pressure: 7bar
  • Operating temperature range: 1°C to 60°C
  • Sensor color: Black
  • Weight: 150g
  •
  • Output: On/Off
  • Switch: NO - SPST
  • Output connection: Wire 2 x 0.14mm² x 1.5m
  • Enclosure rating: IP66
  • Switching voltage: 110/220 Vac and 12/24 Vdc
  •
  • Inlet/outlet port: 1 1/2" BSPT male
  • Gasket: Sealant tape
  •
  • Warranty: 2 years
Datasheets

TECHNICAL DOCUMENTATION

EXAMPLES OF ELECTRICAL SCHEMATICS
