Level Switch LA31N-M12 with M12 plug and 1"NPT aluminum connection

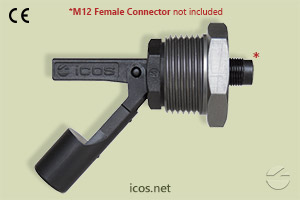

Eicos Level Switch LA31N-M12 for liquids

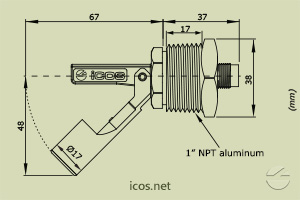

Dimensions of the level switch LA31N-M12

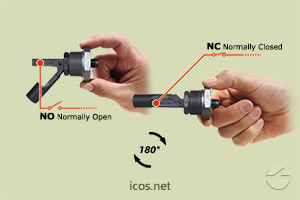

NO or NC installation of the level switch LA31N-M12

1 pc.

43.80 € pc.
In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LA31N-M12, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for temperature up to 125°C.

The sensor, also known as level sensor, indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the external side of the tank in 1"NPT thread. For each liquid level to detect, is needed to install a level switch.

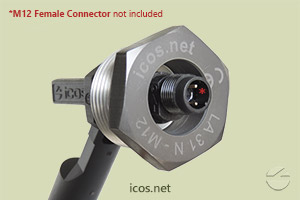

Output by male M12 connection (female M12 connector not included).

Technical Specifications

  • Material: PPA - Polyphthalamide
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 125°C
  • Color: Black
  • Liquid minimum density (SG): 0.70
  • Weight: 70g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Male M12 plug (2 pins)
    Female M12 connector NOT included
  • Enclosure rating: IP66
  •
  • Mounting: External side in 1"NPT thread
  • Sealing: Sealant tape
  • Maximum wall thickness: -
  • Minimum radius in cylindric tank: -
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current
110Vac 20VA 0.2A
220Vac 20VA 0.1A
5Vdc 2.5W 0.5A
12Vdc 5W 0.5A
24Vdc 10W 0.5A
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A

24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.

Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
