Level Switch LD362-M12 with 100mm, M12 plug and 2 detection points

Name: LD362-M12
Brand: Eicos
Price: 62.92 EUR
Availability: InStock

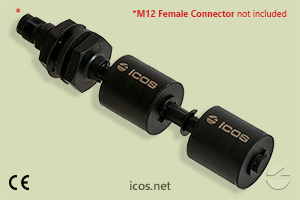

Eicos level switch LD362-M12 for liquids

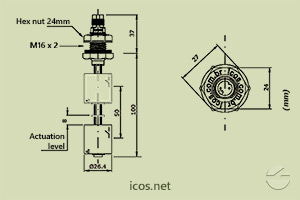

Dimensions of the level switch LD362-M12

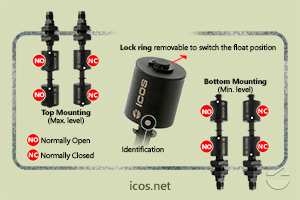

NO or NC installation of the level switch LD362-M12

1 pc.

52.00 € pc.

In stock

Request a Quote 

Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With 100mm rod length, the Eicos level switch LD362-M12 detects 2 level points of water or other liquid at the top (maximum level) or bottom (minimum level) of the tank. It is ideal for temperatures up to 90°C.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole.

Output by male M12 connection (female M12 connector not included).

Technical Specifications

Material: PPA - Polyphthalamide PA hex nut
Maximum operating pressure: 2bar
Operating temperature range: -10°C to 90°C
Color: Black
Liquid minimum density (SG): 0.70
Weight: 40g
Output: On/Off
Switch: NO/NC - SPST
Output connection: Male M12 plug (4 pins)
Female M12 connector NOT included
Enclosure rating: IP66
Mounting: Internal vertical in Ø16mm hole
Sealing: NBR (nitrilic rubber) gasket
Maximum wall thickness: 9mm
Warranty: 2 years

Switching Voltages

Operating Voltage	Max. Switching Power	Max. Switching Current
110Vac	20VA	0.2A
220Vac	20VA	0.1A
5Vdc	2.5W	0.5A
12Vdc	5W	0.5A
24Vdc	10W	0.5A

OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
