Flow Switch FH12B06 ideal for medium flows of viscous oil - 1/2"G

Name: FH12B06
Brand: Eicos
Price: 203.28 EUR
Availability: InStock

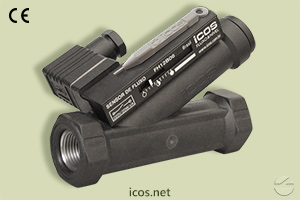

Eicos flow switch FH12B06, ideal for medium liquid flows

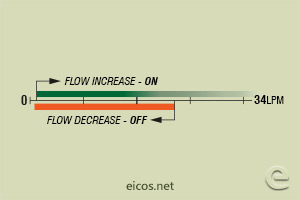

Flow setpoint range of flow switch FH12B06 for liquids flow control

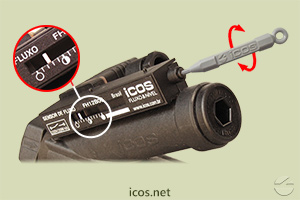

Sensitivity adjustment of the Eicos flow switch FH12B06

1 pc.

168.00 € pc.

Check availability

Request a Quote 

Overview

Description

The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

The Eicos flow switch FH12B06 of 1/2"G port is ideal for medium flows of viscous oil. The sensor has an operation range that allows to adjust the ideal flow of liquid to be detected in application.

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases below the set point.

Electrical output with DIN 43650 connector (included with sensor).

For water applications, see the model FH12B02.

Technical Specifications

Material: PPA - Polyphthalamide
Internal clearance: 114mm²
Maximum operating pressure: 25bar
Operating temperature range: 0°C to 100°C | 140°C @1h
Spring: AISI 302 Stainless Steel
Weight: 280g
Output: On/Off
Switch: NO - SPST
Output connection: DIN 43650 - B Connector
Enclosure rating: IP66
Mounting: Horizontal or vertical with ascending flow
Inlet/outlet port: G 1/2" female (BSP - Parallel)
Sealing: NBR (nitrilic rubber) O’Ring
Warranty: 2 years

Switching Voltages

Operating Voltage	Max. Switching Power	Max. Switching Current
110Vac	20VA	0.2A
220Vac	20VA	0.1A
5Vdc	2.5W	0.5A
12Vdc	5W	0.5A
24Vdc	10W	0.5A

OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
