Flow Switch FH12B02 ideal for medium flows of water - 1/2"G

Name: FH12B02
Brand: Eicos
Price: 203.28 EUR
Availability: InStock

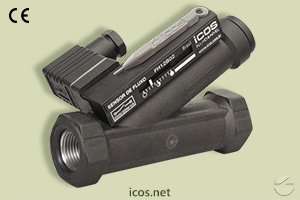

Eicos flow switch FH12B02, ideal for medium liquid flows

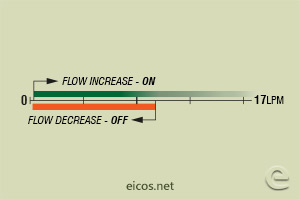

Flow setpoint range of flow switch FH12B02 for liquids flow control

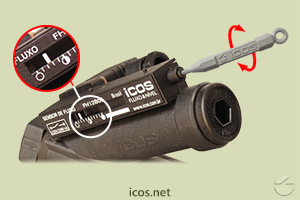

Sensitivity adjustment of the Eicos flow switch FH12B02

Discontinued product

Replaced by:

/img-geral/produtos/Flow Switch (Flow Sensor) for water flow

Flow Switch FH12B02-M12

For detection of medium water flow.

Overview

Description

The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

The Eicos flow switch FH12B02 of 1/2"G port is ideal for medium flows of water. The sensor has an operation range that allows to adjust the ideal flow of liquid to be detected in application.

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases below the set point.

Electrical output with DIN 43650 connector (included with sensor).

For oil applications, see the model FH12B04 and FH12B06.

Technical Specifications

Material: PPA - Polyphthalamide

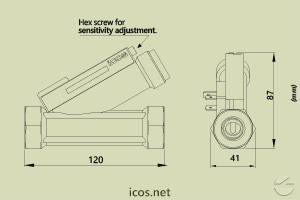

Internal clearance: 114mm²
Maximum operating pressure: 25bar
Operating temperature range: 0°C to 100°C | 140°C @1h
Spring: AISI 302 Stainless Steel
Weight: 280g
Output: On/Off
Switch: NO - SPST
Output connection: DIN 43650 - B Connector
Enclosure rating: IP66
Mounting: Horizontal or vertical with ascending flow
Inlet/outlet port: G 1/2" female (BSP - Parallel)
Sealing: NBR (nitrilic rubber) O’Ring
Warranty: 2 years

Switching Voltages

Operating Voltage	Max. Switching Power	Max. Switching Current
110Vac	20VA	0.2A
220Vac	20VA	0.1A
5Vdc	2.5W	0.5A
12Vdc	5W	0.5A
24Vdc	10W	0.5A

OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
