Flow Switch FA14B02 ideal for low flows of water - 1/4"G
1 pc.
2 — 5 pcs.
+ 6 pcs.
VAT not included
Description
The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

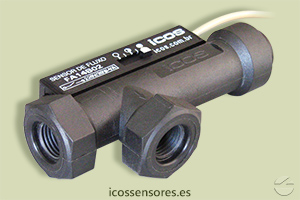

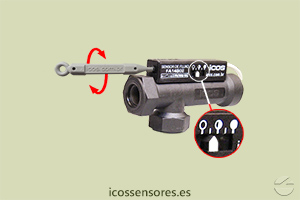

The Eicos flow switch FA14B02 of 1/4"G port is ideal for low flows of water. The sensor has a operation range that allow to adjust the ideal flow of liquid to be detected in application.

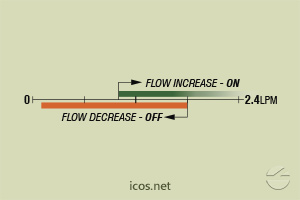

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases to bellow of adjusted.
Output connection in 1.50m wire.

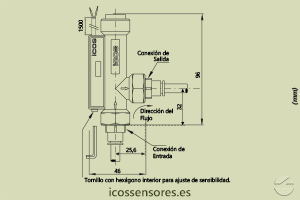

Technical Specifications
- Material: PPA - Polyphthalamide
- Internal clearance: 8mm²
- Maximum operating pressure: 25bar
- Operating temperature range: 0°C to 100°C | 140°C @1h
- Spring: AISI 304 Stainless Steel
- Weight: 125g
- Output: On/Off
- Switch: NO - SPST
- Output connection: Wire 2 x 0.14mm² x 1.5m
- Enclosure rating: IP66
- Mounting: Vertical with ascending flow
- Inlet/outlet port: G 1/4" female (BSP - Parallel)
- Sealing: NBR (nitrilic rubber) O’Ring
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current | Peak Current |
| 110Vac | 20VA | 0.2A | 0.5A @20ms |
| 220Vac | 20VA | 0.1A | 0.5A @20ms |
| 5Vdc | 2.5W | 0.5A | 1A @20ms |
| 12Vdc | 5W | 0.5A | 1A @20ms |
| 24Vdc | 10W | 0.5A | 1A @20ms |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
24Vac: NOT recomended
A Snubber Filter K8 is sent with the sensor for protection of the electrical contact reed.
Datasheet and Installation Guide
- Datasheet (PDF 267KB)
- Installation Manual (PDF 413KB)
Examples of Electrical Schematics
